principle:

The system uses the optimal hair removal wavelength of 808nm diode for deep penetration into the dermis where the hair follicle is located. In treatment procedure, a series of low fluence, high repetition pulses increases the temperature of both the hair follicle and the surrounding, nourishing tissue to 45 degree Celsius. This more gradual heat delivery uses the chromophores into the surround tissue as reservoirs to effectively heat up the hair follicle. This, along with the heat energy absorbed directly by the hair follicle, damages the follicle and prevents re-growth.



808nm diode laser machine is particularly effective to hair follicle melanocytes without injury surrounding tissue. The laser light can be absorbed by hair shaft and hair follicles in the melanin, and converted into heat, thus increasing the hair follicle temperature. When the temperature raises high enough to irreversibly damage the hair follicle structure, which disappear after a period of natural physiological processes of hair follicles and thus achieve the purpose of permanent hair removal.

















 Treatment:

Hair removal for the whole body

Hair removal for the whole body, the inelegant hair in the whole body (hair in the growing period), including the slight hair in light color



 Tender skin and whitening

Improve the coarse pore, rough skin, gloomy complexion to make the skin white and the color uniformed, and recover the skin elasticity.







 Advantages:

1) 808nm wavelength laser can be fully absorbed by the the hair follicle, reach the hair

follicle position through the cortex effectively.



2) The semiconductor laser pulse time is from 5mm to 100mm, it can protect the

surface cell and remove the different hair.



3) 808nm semiconductor laser hair remover instrument penetrates deeply with

little surface absorption ability to laser and without hyperpigmentation.



4) There is no need to anesthesia, just the slight acanthesthesia, there is no need

for the special care after the surgery, it is OK to wash face and make up, which

doesn’t affect the life.



Before and After:

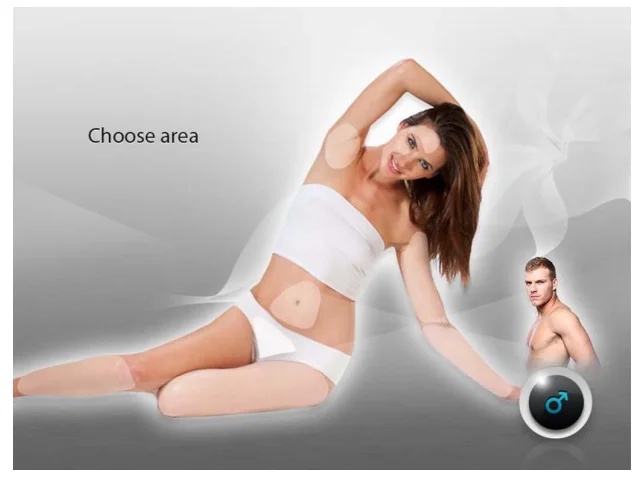

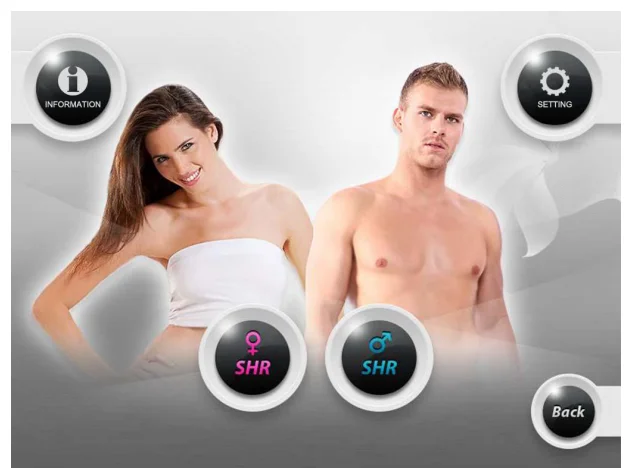

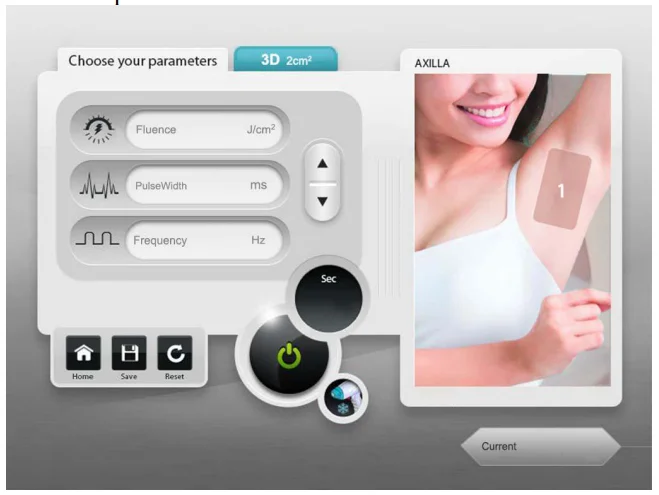

Interface:

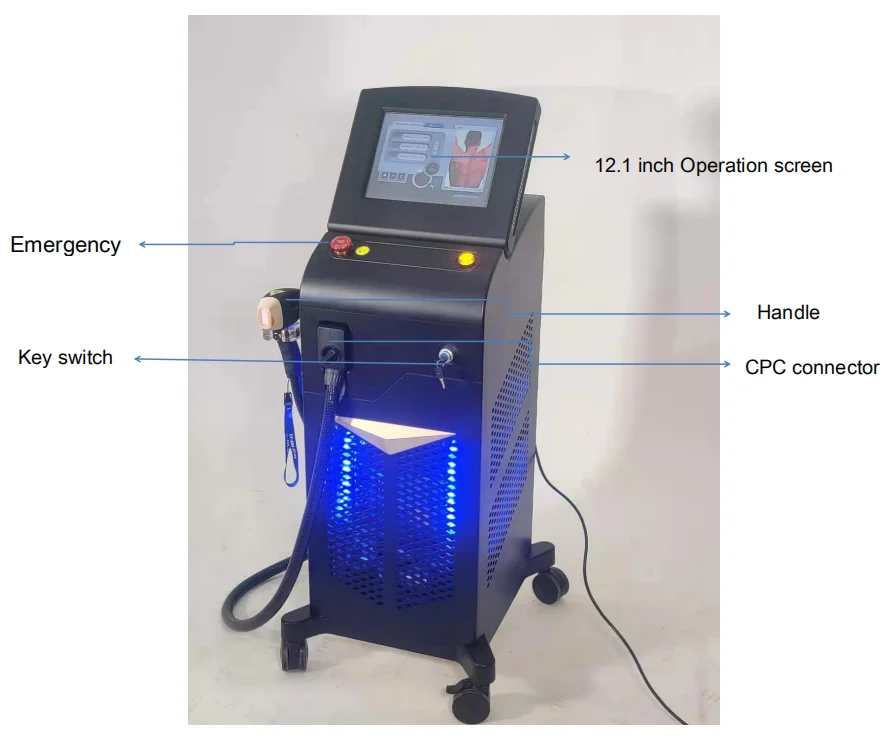

Display	12.1 inch
Laser Type	Continuous laser
wavelength	755nm+808nm+1064nm
Wavelength power	1200w laser modules
Fequency	1-15hz
pulse duration	5~400ms adjustable 650ms
Energy	1-160J
Spot size	15mm*35mm
Cooling system	Water cooling + air cooling + semiconductor
Effective bright dipping	20 million shots
Power requirement	AC 110V/220 50~60Hz

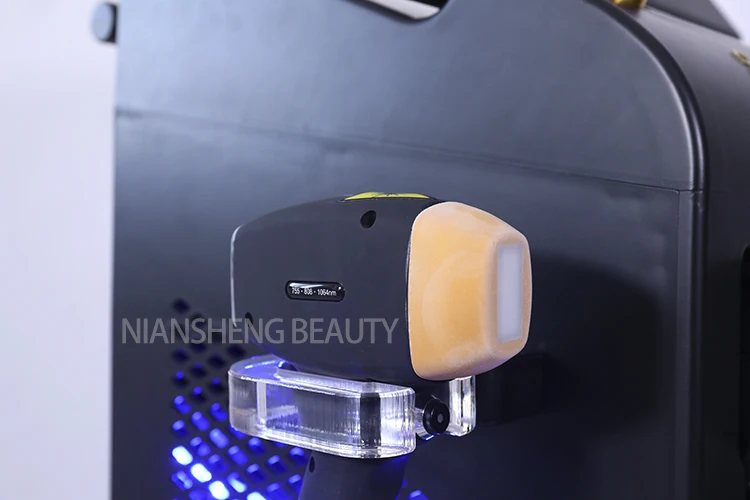

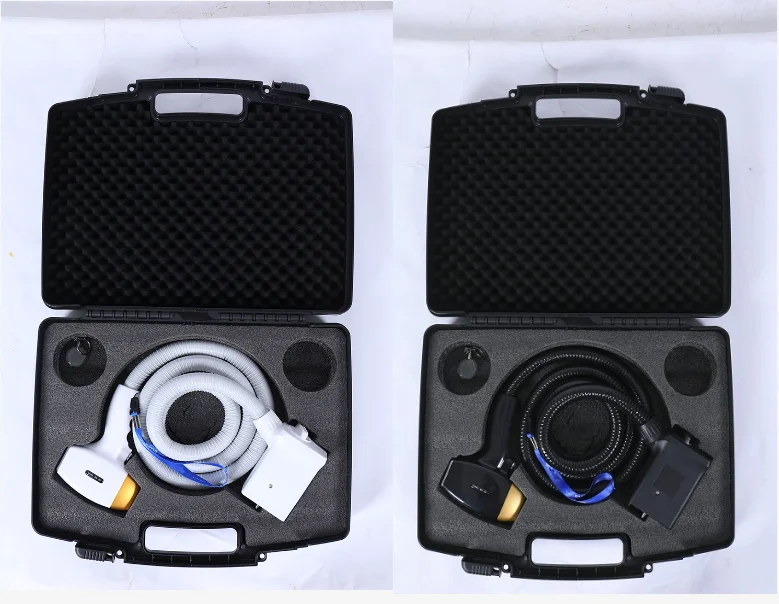

Handle configuration	One piece for Standard configuration (1200W)
Externalpackaging dimension	62cm*53cm*119cm
Net weight	65 kg
Total weight of package	79kg
